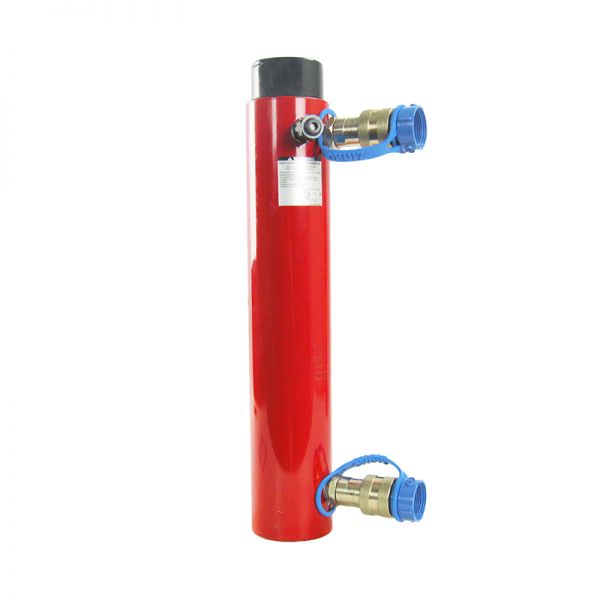

ZRD-1010, 10 Ton 10" Stroke Double Acting Cylinder
$1,059.00
In stock
Only 1 left
SKU
21D-1010
Overview
These cylinders are perfect for multiple applications where high-powered push and pull cycles are desired.
Special Features:
- The double-acting is designed to produce greater speed and positive control for applications requiring an extra measure of strength, quality, reliability, and safety.
- Interfaces with automated operations while providing both powered push and pull cycles.
- Standard models come with a threaded collar along with a threaded plunger.
- The removable hardened saddles protect the plunger during lifting and pressing.
Country of Origin: Taiwan
| Capacity (Tons) | 10 |
|---|---|
| Stroke (in) | 10 |
| Oil Capacity - Advance (in³) | 22.45 |
| Oil Capacity - Return (in³) | 7.45 |
| Cylinder Effective Area - Advance (in²) | 2.24 |
| Cylinder Effective Area - Return (in²) | 0.74 |
| Max. Cylinder Capacity - Advance (Tons) | 10 |
| Max. Cylinder Capacity - Return (Tons) | 3 |
| Minimum Height (in) | 16.10 |
| Maximum Heights (in) | 26.10 |
| Outside Diameter (in) | 2.88 |
| Weight (lbs) | 30.000000 |
